UNDER DOOR CAMERA

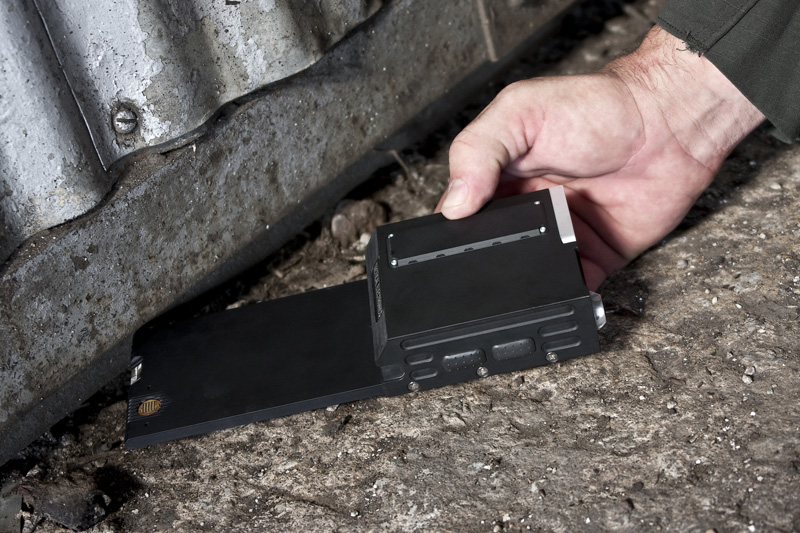

The Under Door Camera System is a wireless camera designed to provide operators with covert video inspection of rooms behind closed doors. A light sensitive black and white camera, an IR LED illuminator, and 4 IR LEDs provide wireless vision to any dark area. An optional telescoping deployment pole enables operators to quickly deploy and maneuver the unit from a position of cover. The UDC also features an internal DVR that records real-time video directly to an SD card for post operation review and archiving.

IN THIS KIT

• One: Under Door Camera designed for special operations
• One: 6ft. Hard-wire cable (compatible with Handheld Monitor)
• One: Monitoring option (Handheld or Wrist Mounted)
• One: 16GB SD Card
• One: Storm Case® with precision cut foam

UDC Insertion Panel:
The UDC unit contains a .005 lux black and white camera housed between four directional IR LEDs and one flood IR illuminator. The IR illuminator provides 180 degrees of illumination and is designed to fully flood a 15 x 15ft room with IR light. Due to varying amounts of ambient light in tactical environments the IR illuminator offers adjustable brightness control.

FEATURES

• Wireless video transmission
• Light sensitive camera
• IR LED flood illuminator
• Four directional IR LEDS
• Optional hard-wire operation
• Distal tip B/W camera
• SD card recording
• Resilient construction
• 400 lines of resolution
